U.S. Pioneer crossovers DN-6 and DN-7

These items have been SOLD.   The photos are left up for U.S. Pioneer history.

DN-6 : switchable between 2-way and 3-way crossover, impedance is 8 ohms
2-way crossover frequency=4khz
3-way crossover frequency=.5khz & 4khz

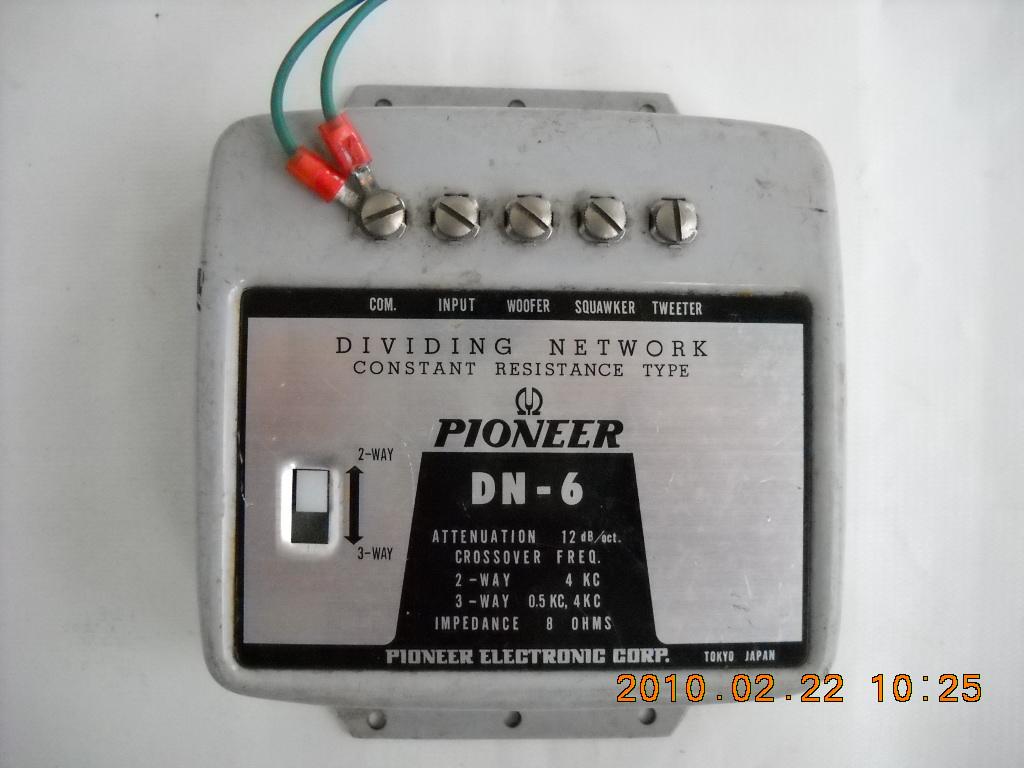

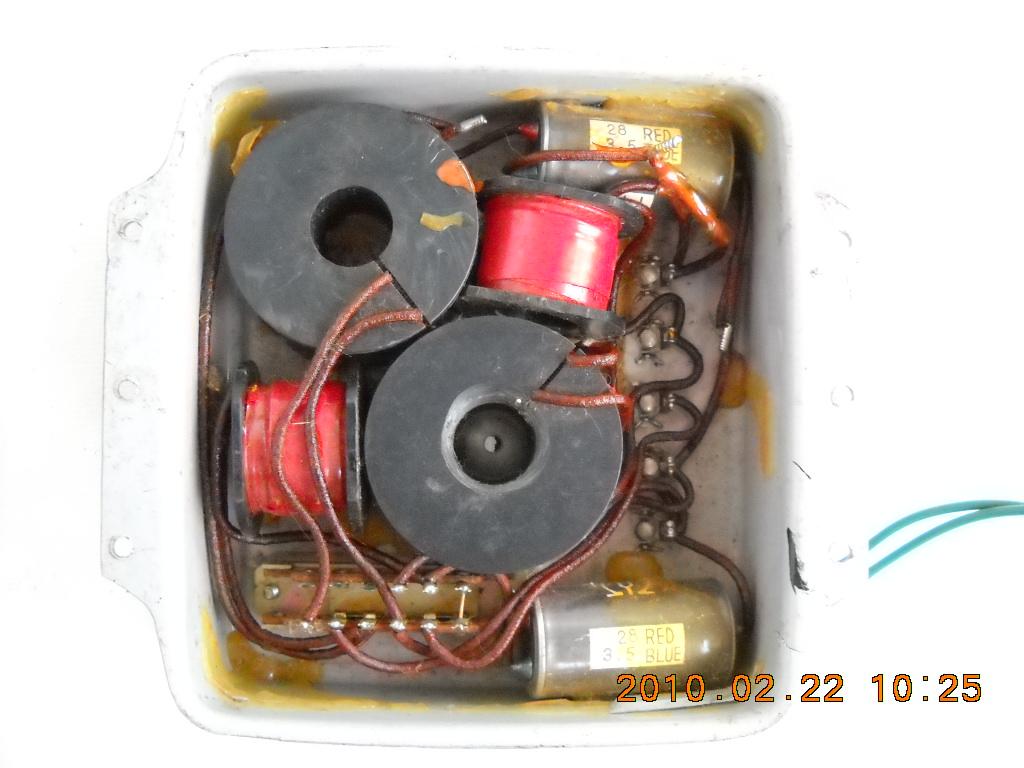

DN-6 crossover DN-6 crossover

DN-7 : same as DN-6 except impedance is 16 ohms

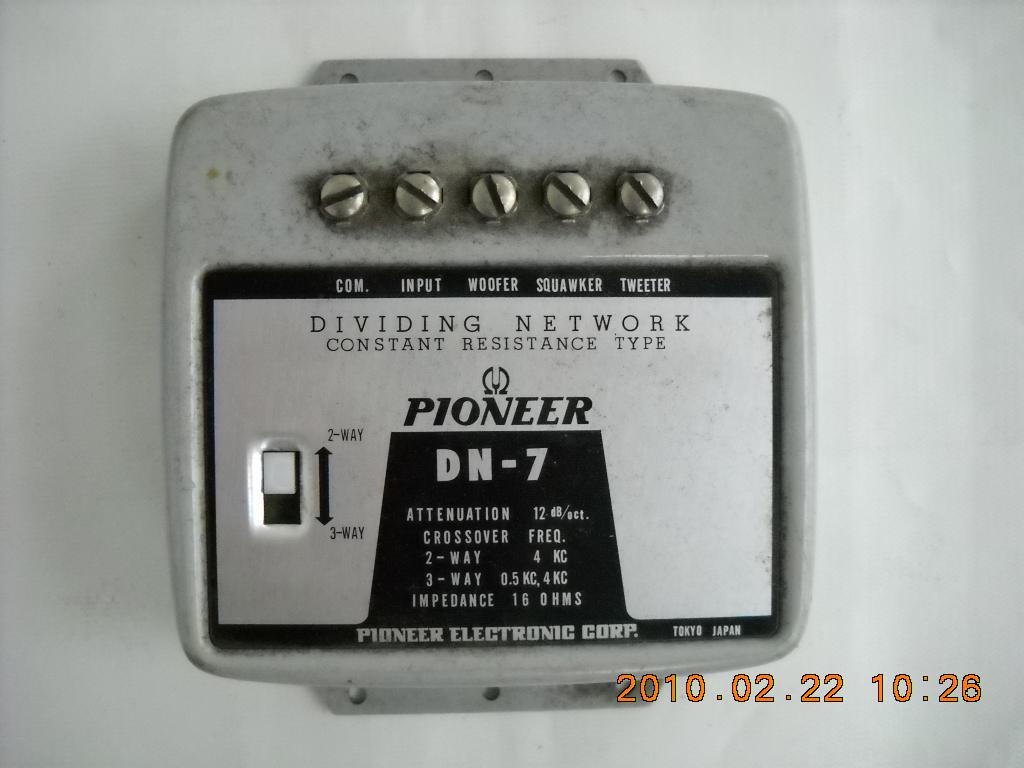

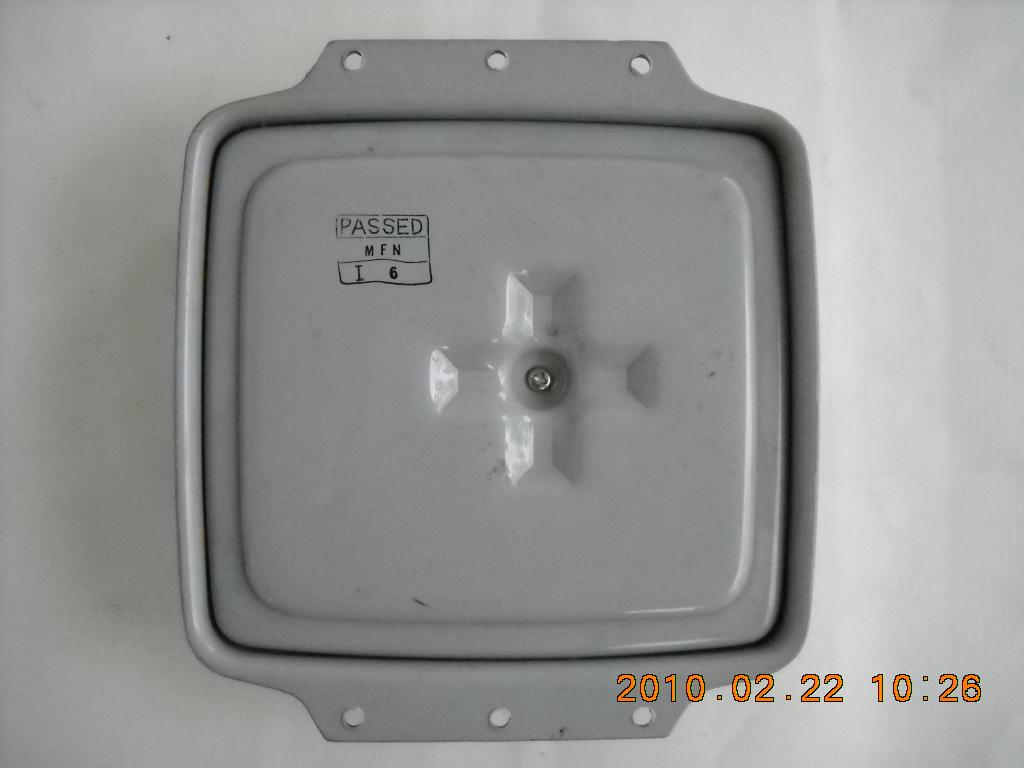

DN-7 crossover DN-7 crossover

These are museum pieces.
Without serial numbers I have no idea how old they are except definitely pre-1975.

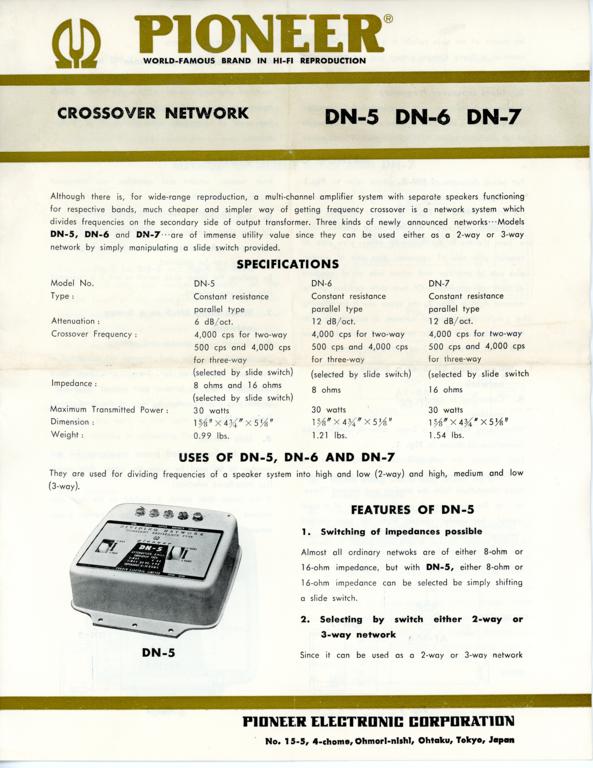

The below data sheet is available at greater resolution (400dpi jpg or 600dpi pdf),
in either .pdf or .jpg format, email me for a copy.

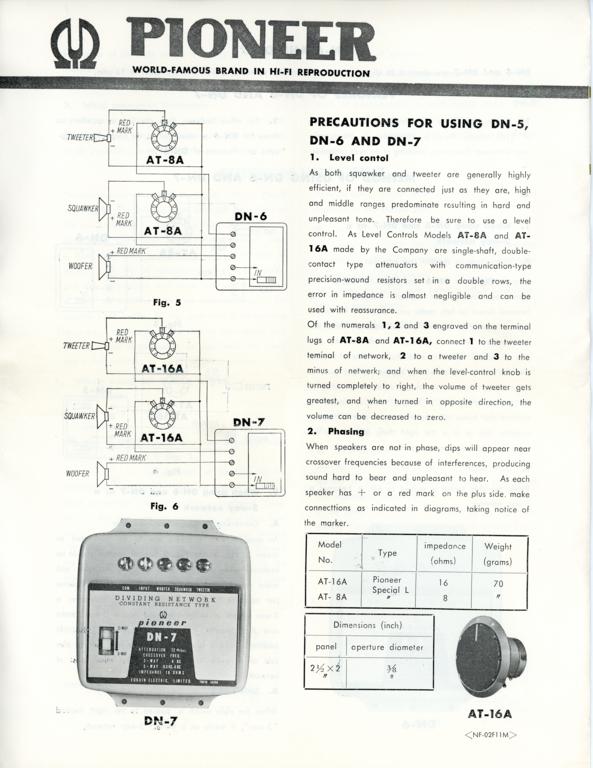

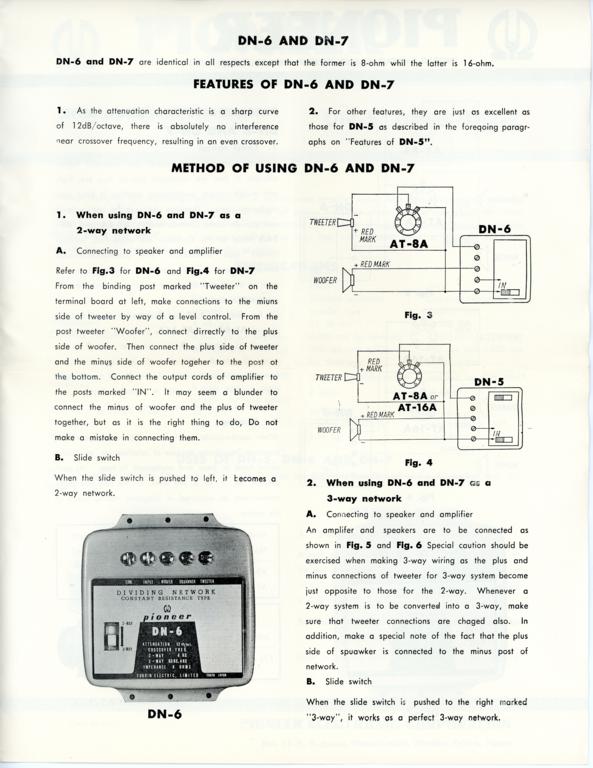

crossover information crossover information

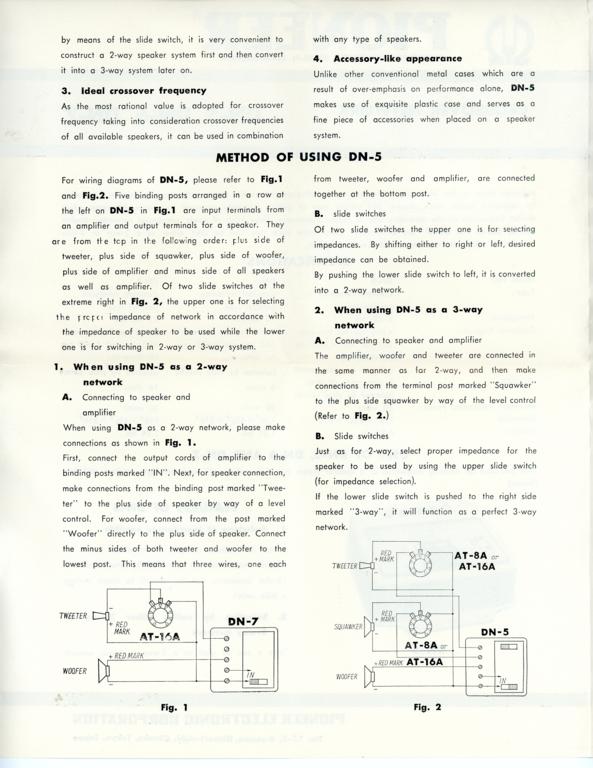

crossover information crossover information

400 dpi pdf download for: Crossover Network DN-5 DN-6 DN-7
